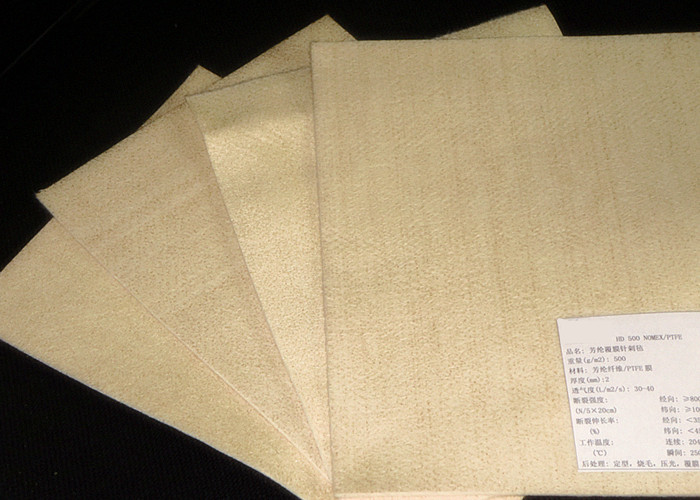

heat reisistant air industry dust filter cloth used in cement
factory
Quick Detail:
dust filter cloth
1. Non - toxic and odorless
2. Long service life
3. Good stiffness, easy to pleat
4. High air permeability
5. High dust holding
Description:
Excellent resistant to hydrolysis, acids and alkalies.
good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specifications
1. high filtration blow speed
2. low pressure drop
3. anti - abrasion
4. temperature:204-250
Description:
high filtration blow speed ;low pressure
drop;anti-abrasion;temperature:204-250
Can filter normal atmospheric temperature or hightemperature gas
including corroding gas mixed with acid and alkali, water, oil.
Widely used in metallurgy, chemical industry, building materials,
smelting, generating electricity, pottery, machinery, mine,
petroleum,
dyestuffs, food, grain processing.
Specification
| 1 | Article name | | Polyester filter bag |
| | | |
| 2 | Composition | | |
| Fiber | | Polyester |
| Scrim | | Polyester |
| | | |
| 3 | Normal Bag Size | Daimeter | 120-160mm or as request |
| | Length | 2000-7000mm or as request |
| | | |
| 4 | Aplication | | cement/steel/ Phosphate/power factory |
| | | |
| 5 | Weight | | 300-700g/m2 |
| | | |
| 6 | Thickness | | 1.5-2.5mm |
| | | |
| 7 | Ventilation Rate(m3/m2/min) | 6-24 |
| | | |
| 8 | Tension at break(N/5X20CM) | T | 900 |
| | W | 1200 |
| | | |
| 9 | Elongation at break% | T | <35 |
| | W | <50 |
| | | |
| 10 | Working temperature(℃) | Continuous | 130 |
| | Instantaneous | 140 |
| | | |
| 11 | Resistance to acid | | Good |
| | | |
| 12 | Resistance to alkali | | Common |
| | | |
| 13 | Post-treatment | | Singeing,Glazing,Coating |
| | | Heat setting,PTFE Membrance |
Notices:
1. Materials avaliable: polyester, polypropylene,Nomex , PPS, PTFE,
P84, Acrylic , glassfiber .
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Nonwovern dust filter bag | Continuous Temperature | Peak Temperature | Description | Resistance to Acids | Resistance to Alkalis | Resistance to Oxidation | PH Value |
| Polypropylene | 90℃ | 100℃ | PP | excellent | excellent | restricted | 1-14 |
| Acrylic | 125℃ | 140℃ | AC | good | good | good | 3-11 |
| Polyester | 130℃ | 150℃ | PE | restricted | moderate | good | 4-12 |
| Polyphenylen sulfide | 190℃ | 200℃ | PPS | excellent | excellent | moderate | 1-14 |
| Nomex | 204℃ | 250℃ | Nomex | good | excellent | good | 3-14 |
| Polysulfonamide | 250℃ | 300℃ | PSA | excellent | excellent | excellent | 3-14 |
| Polymide | 260℃ | 300℃ | P84 | good | moderate | good | 3-13 |
| Polytertrafluoroethylene | 250℃ | 280℃ | PTFE | excellent | excellent | excellent | 1-14 |
| Yadi | 150℃ | 160℃ | Yadi | excellent | excellent | excellent | 3-13 |
| Glassfiber | 260℃ | 300℃ | BQ | good | good | good | 3-11 |
Applications:
1. Air filters capture pollen, allergens, mold spores, and other
microscopic particles to reduce symptoms and help everyone breathe
easier.
2. medical filters made from nonwovens are key in any operating
room to keep out pathogens, bacteria or microbes that might
otherwise contaminate a sterile environment.
3. Oil filters are an important component in your car. The nonwoven
fabrics in the filter help remove contaminants from the engine oil,
hydraulic oil, trasmission oil and lubricating oil.
4. Automotive engine air intake filter helps automobile engines run
at the highest efficiency,optimum airflow helps ensure engines run
most effectively, which reduces fuel waste.
5. Filters for industrial filtration are used for dust produced in
processing industries such as grinding, separation, brushing,
transportation, drying, incinerating, etc.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust
filtration&spare parts in China.We have imported filter needle
felt production line ASSELIN from France and we can produce very
good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production
ability can achieved 20,000 square meters per day . We can produce
a large range of various filter fabric, such as polyester filter
fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter
fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high
technology to develop the first filter bag production line in
China. Which help most filter bag production factory save a lot of
human lab our cost but promote the work effection . The advanced
technology and simple operation way of automatic filter bag
production line has won a lot of customer’s praise.
